MAFR-000631-000001 791-821 MHz Single Junction Drop-In Circulator

The MAFR-000631-000001 is a single-junction circulator designed for wireless infrastructure applications. It operates over the frequency range of 791 MHz to 821 MHz. Third Order Intermodulation Distortion (IMD3) is an excellent –80 dBc (2 × 65 W CW tones, 1 MHz spacing). Insertion loss is less than 0.25 dB over an operating temperature range of –40 °C to +90 °C. The MAFR-000631-000001 comes in an industry-recognized package designed for drop-in assembly.

技术特性
  • BeO free
  • Operating frequency range: 791 MHz to 821 MHz
  • Insertion loss: 0.25 dB
  • Isolation: 20 dB
  • Return loss: 20 dB
  • IMD3 (2 × 65 W CW tones, 1 MHz spacing): –80 dBc
MAFR-000631-000001 实物图

MAFR-000631-000001 实物图

应用领域 APPLICATION
  • LTE
  • Wireless infrastructure
订购信息 Ordering Information
  • MAFR-000631-000001

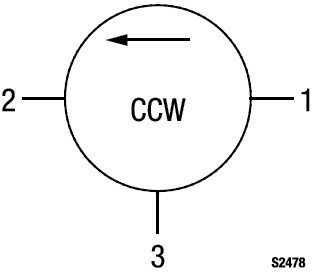

功能框图 Functional Block Diagram

MAFR-000631-000001 功能框图
