MAFR-000662-000001 2300-2400 MHz Single Junction Robust Lead Circulator
The MAFR-000662-000001 is a single-junction circulator designed for wireless infrastructure applications. It operates over the frequency range of 2300 MHz to 2400 MHz. Insertion loss is less than 0.22 dB over an operating temperature range of –40 °C to +85 °C. The MAFR-000662-000001 comes in an industry-standard surface mount package and is designed for automated SMT placement.
技术特性

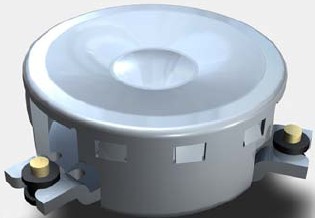

MAFR-000662-000001 实物图
|
应用领域 APPLICATION
订购信息 Ordering Information

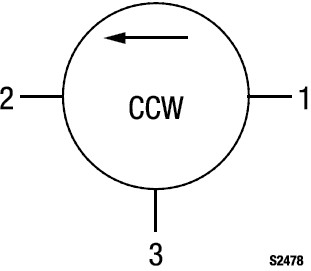

功能框图 Functional Block Diagram
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| MAFR-000662-000001 数据资料DataSheet下载:pdf | Rev.V2 | 2 页 |
