SE2425U 2.4 GHz Bluetooth Power Amplifier IC
A monolithic, high-efficiency, silicon-germanium power amplifier IC, the SE2425U is designed for 2.4 GHz wireless applications, including BluetoothTM Class 1 basic rate and enhanced data rate applications. It delivers +25 dBm output power in standard rate GFSK mode and +19.5 dBm output power in enhanced rate 8DPSK. The SE2425U provides a digital mode control input for boosting the linear performance for enhanced data rate applications. The SE2425U operates at 3.3 V DC with a peak efficiency of 43 % in basic rate and 21 % in enhanced rate mode. The internal bias management allows the part to only draw 28 mA in Class 2 output power levels. Output match integrates the high Q inductors to reduce component count and bill of materials. It uses two external capacitors to allow for varying loads, such as switches and filters, in different applications. The silicon/silicon-germanium structure of the SE2425U, and its exposed die-pad package, soldered to the system PCB, provide high thermal conductivity and a subsequently low junction temperature. This device is capable of operating at a duty cycle of 100 percent.
技术特性
- Integrated input and inter-stage match
- +25 dBm GFSK Output Power
- +19.5 dBm 8DPSK Output Power
- Low current: 110 mA typical @ POUT = +20 dBm
- Ultra low quiescent current: 28 mA
- Digital Enable for direct interface to standard CMOS processors
- Mode-control for easy switching between standard and EDR modes
- Lead Free and RoHS Compliant
- Ultra thin package: 0.5 mm
- 3.3 V single supply operation
订购信息 Ordering Information
| SE2425U |
3 x 3 x 0.5 mm QFN |
Sample |
| SE2425U-R |
3 x 3 x 0.5 mm QFN |
Tape & Reel |
| SE2425U-EK1 |
N/A |
Evaluation Kit |
|
应用领域 APPLICATION
- Bluetoothtm wireless technology (Class 1)
- USB dongles, PCMCIA, flash cards, Access Points
- Enhanced data rate

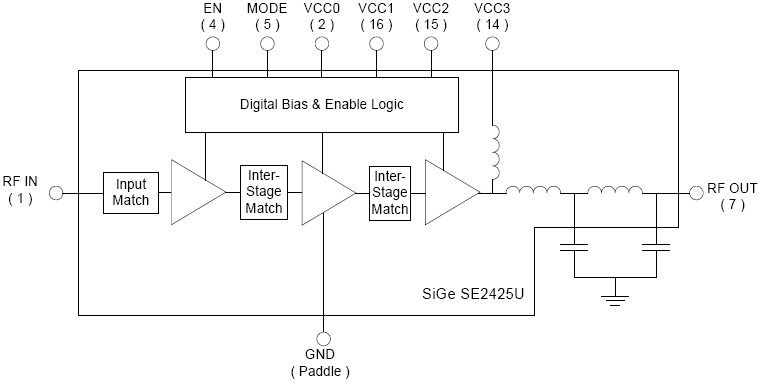

功能框图 Functional Block Diagram
|
