SE2528L 2.4 GHz Power Amplifier with Power Detector
The SE2528L is a 2.4 GHz power amplifier designed for use in the 2.4 GHz ISM band for wireless LAN applications. The device incorporates a power detector for closed loop monitoring of the output power. The SE2528L also offers a high power mode by operating at 5 V. This provides an extra 2 dB of improved EVM performance. The SE2528L includes a digital enable control for device on/off control. The device is pin for pin compatible to SKYWORKS’ SE2524L, allowing both devices to share the same application board with only a few component changes required. This provides users with both a high and low power solution without changing the layout. The SE2528L temperature compensated power detector is highly immune to mismatch at its output with less than 1.5 dB of variation with a 2:1 mismatch.
技术特性
- Single 3.3 V Supply Operation
- 21 dBm, EVM = 3 %, 802.11g, OFDM 54 Mbps
- 24 dBm, ACPR < -32 dBc, 802.11b
- Dual Supply Operation
- 23 dBm, EVM = 3 %, 802.11g, OFDM 54 Mbps
- 25 dBm, ACPR < -32 dBc, 802.11b
- 33 dB Gain
- Pin for pin compatible to the SE2525L
- Selectable Power Detector Slope for use with multiple chipsets (Negative and Positive)
- Integrated power amplifier enable pin (VEN)
- Lead Free package, 16 pin 4 mm x 4 mm x 0.9 mm QFN, MSL 1
订购信息 Ordering Information
| SE2528L |
3 x 3 x 0.5 mm QFN |
Sample |
| SE2528L-R |
3 x 3 x 0.5 mm QFN |
Tape & Reel |
| SE2528L-EK1 |
N/A |
Evaluation Kit |
|
应用领域 APPLICATION
- DSSS 2.4 GHz WLAN (IEEE802.11b)
- OFDM 2.4 GHz WLAN (IEEE802.11g)
- Access Points, PCMCIA, PC cards

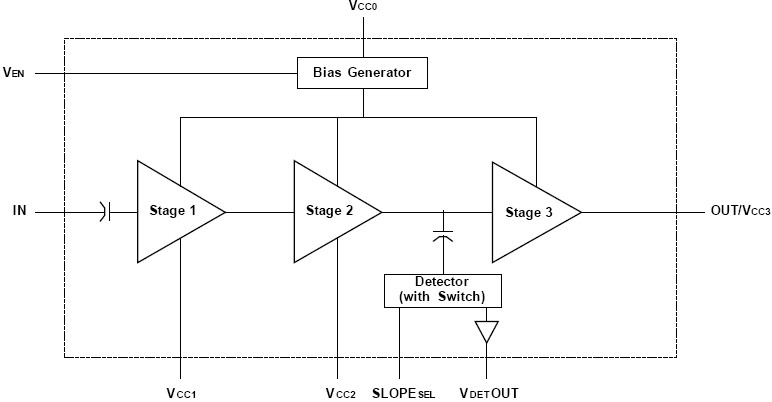

功能框图 Functional Block Diagram
|
