SE2565T 2.4 GHz High Power Wireless LAN Power Amplifier
The SE2565T is a 2.4 GHz power amplifier designed for use in the 2.4 GHz ISM band for wireless LAN applications. The device incorporates a power detector for closed loop monitoring of the output power. The SE2565T also offers a high power mode by operating at 5 V. This provides an extra 2 dB of improved EVM performance. The SE2565T includes a digital enable control for device on/off control. The device is pin for pin compatible to SKYWORKS’ SE2524L, allowing both devices to share the same application board with only a few component changes required. This provides users with both a high and low power solution without changing the layout. The SE2565T temperature compensated power detector is highly immune to mismatch at its output with less than 1.5 dB of variation with a 2:1 mismatch.
技术特性
- Dual Mode IEEE802.11b, IEEE802.11g, IEEE802.11n
- 23 dBm, EVM = 3%, 802.11g, OFDM 54 Mbps
- 26 dBm, ACPR < -32 dBc, 802.11b
- Integrated PA, Input Match, 2.8V reference voltage generator
- Integrated Temperature Compensated, Positive Slope Power Detector
- Pb-free, RoHS compliant and Halogen-free
- 3 mm x 3 mm x 0.6 mm QFN, MSL 3
订购信息 Ordering Information
| SE2565T |
16 pin QFN |
Sample |
| SE2565T-R |
16 pin QFN |
Tape & Reel |
| SE2565T-EK1 |
N/A |
Evaluation Kit |
|
应用领域 APPLICATION
- IEEE802.11b DSSS WLAN
- IEEE802.11g,n OFDM WLAN
- High Power Wireless Networking Products

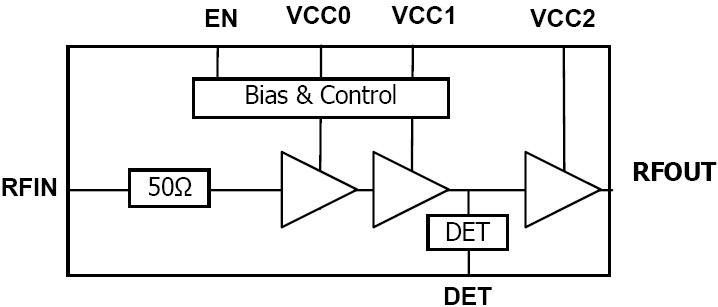

功能框图 Functional Block Diagram
|
