SE2568U 2.4 GHz High Efficiency Wireless LAN PA
The SE2568U is a complete 802.11 b/g WLAN discrete power amplifier. The device provides all the functionality of the power amplifier, power detector, filter, associated input, inter-stage and output matching in an ultra compact 2mm x 2mm x 0.5mm form factor. The SE2568U is designed for ease of use, with all the critical input and output matching integrated. The SE2568U includes a transmitter power detector with 20 dB of dynamic range and a digital Enable for power on/off control. Harmonic filters and an input 3.2GHz LO rejection filter are integrated on-chip. The power ramp rise/fall time is 0.7 μs typical.
技术特性
- Dual Mode IEEE802.11b & IEEE802.11g
- Integrated PA, digital bias control, 50Ω input and output match, 3.2GHz TX Filter.
- Integrated harmonic filter.
- Integrated load insensitive Power Detector, with <1dB error at 2:1 mismatch
- 20 dBm, 802.11b, 11 Mbps, ACPR <-30 dBc, 3.3V
- 18dBm 802.11g, @ 3.0 % EVM, 54 Mbps, 3.3V
- 20.5dBm, 802.11g @ 3.0 % EVM, 54Mbps, 5.0V
- Lead free, Halogen free, ROHS compliant , 2 x2x0.5 mm QFN package, MSL 1
订购信息 Ordering Information
| SE2568U |
8 pin QFN |
Sample |
| SE2568U-R |
8 pin QFN |
Tape & Reel |
| SE2568U-EK1 |
N/A |
Evaluation Kit |
|
应用领域 APPLICATION
- IEEE802.11b DSSS WLAN
- IEEE802.11g OFDM WLAN
- IEEE802.11n OFDM WLAN
- General Applications

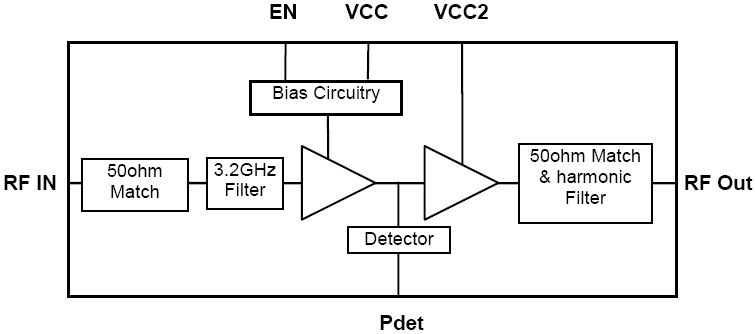

功能框图 Functional Block Diagram
|
