SE2597L 2.4 GHz Power Amplifier with Power Detector

The SE2597L is a 2.4 GHz power amplifier designed for use in the 2.4 GHz ISM band for wireless LAN applications. The device incorporates a power detector for closed loop monitoring of the output power. The SE2597L includes a digital enable control for device on/off control. The SE2597L temperature compensated power detector is highly immune to mismatch at its output with less than 1.5 dB of variation with a 2:1 mismatch.

技术特性
  • Single 3.3 V Supply Operation
    • 19 dBm, EVM = 3 %, 802.11g, OFDM 54 Mbps
    • 23 dBm, ACPR < -32 dBc, 802.11b
  • 28 dB Gain
  • Integrated temperature compensated power detector
  • Digital power amplifier enable pin (VEN)
  • Lead Free, Halogen Free and RoHS compliant
  • Small package: 16 pin 3 mm x 3 mm x 0.9 mm QFN, MSL 1
订购信息 Ordering Information
SE2597L  16 pin QFN  Sample
SE2597L-R  16 pin QFN Tape & Reel
SE2597L-EK1  Evaluation Kit Standard
应用领域 APPLICATION
  • DSSS 2.4 GHz WLAN (IEEE802.11b)
  • OFDM 2.4 GHz WLAN (IEEE802.11g)
  • OFDM 2.4 GHz WLAN (IEEE802.11n)
  • Access Points, PCMCIA, PC cards

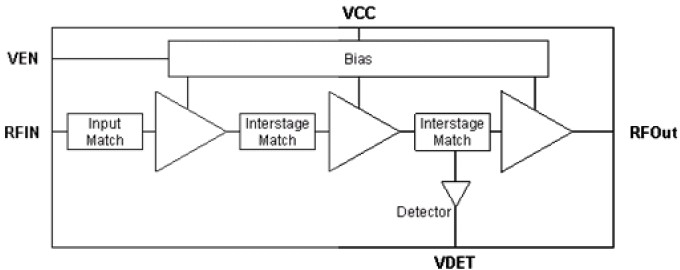

功能框图 Functional Block Diagram

SE2597L 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SE2597L 数据资料DataSheet下载:pdf Rev.V2 2 页
