SE2598L 2.4 GHz Power Amplifier with Power Detector
The SE2598L is a 2.4 GHz power amplifier designed for use in the 2.4 GHz ISM band for wireless LAN applications. The device incorporates a power detector for closed loop monitoring of the output power. The SE2598L includes a digital enable control for device on/off control. The SE2598L temperature compensated power detector is highly immune to mismatch at its output with less than 1.5 dB of variation with a 2:1 mismatch.
技术特性
- Single 3.3 V Supply Operation
- 19 dBm, EVM = 3 %, 802.11g, OFDM 54 Mbps
- 23 dBm, ACPR < -32 dBc, 802.11b
- 28 dB Gain
- Integrated temperature compensated power detector
- Digital power amplifier enable pin (VEN)
- Lead Free, Halogen Free and RoHS compliant
- Small package: 16 pin 3 mm x 3 mm x 0.9 mm QFN, MSL 1
订购信息 Ordering Information
| SE2598L |
16 pin QFN |
Sample |
| SE2598L-R |
16 pin QFN |
Tape & Reel |
| SE2598L-AK1 |
Application Kit |
Standard |
|
应用领域 APPLICATION
- DSSS 2.4 GHz WLAN (IEEE802.11b)
- OFDM 2.4 GHz WLAN (IEEE802.11g)
- OFDM 2.4 GHz WLAN (IEEE802.11n)
- Access Points, PCMCIA, PC cards

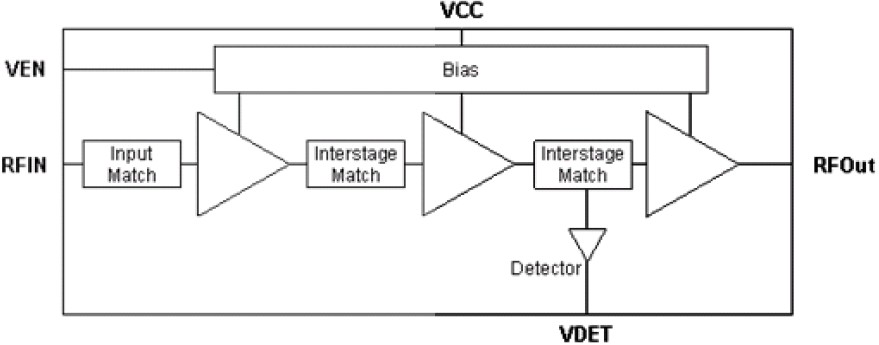

功能框图 Functional Block Diagram
|
