SE2600S 2.4 GHz WLAN Switch/Low-Noise Amplifier Front-End
The SE2600S is an integrated Front-End Module (FEM) with a Bluetooth port to complement WLAN chipsets with an integrated Power Amplifier (PA). The SE2600S integrates a Single-Pole, Triple-Throw (SP3T) switch and Low-Noise Amplifier (LNA) with a bypass mode in an ultra-compact package. The device is capable of switching between WLAN receive, WLAN transmit, and Bluetooth. The SE2600S is provided in a small, 11-bump, 1.07 x 1.05 mm Wafer Level Chip Scale Package (WLCSP). A functional block diagram is shown in Figure 1. The pin configuration and package are shown in Figure 2. Signal pin assignments and functional pin descriptions are provided in Table 1.
技术特性
- Integrates an SP3T switch and LNA with bypass mode
- Gain: 12 dB
- Noise Figure: 1.8 dB
- Bluetooth® path loss: 0.5 dB
- Small WLCSP (11-bump, 1.07 x 1.05 x 0.38 mm) 250 μm ball pitch package (MSL1, 260 °C per JEDEC-J-STD-020)
订购信息 Ordering Information
| SE2600S LNA Front-End |
SE2600S-R |
SE2600S-EK1 |
|
应用领域 APPLICATION
- IEEE802.11b DSSS WLAN
- IEEE802.11g/n OFDM WLAN
- Embedded systems

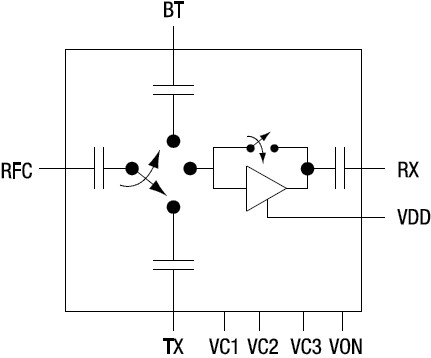

功能框图 Functional Block Diagram
|
