SE2601T 2.4 GHz WLAN Switch/LNA Front-End
The SE2601T is a single chip integrated front-end with a Bluetooth port to complement WLAN chipsets with integrated Power Amplifier. The Front-end integrates SP3T Switch and Low Noise Amplifier with bypass mode in an ultra compact package. It is capable of switching between WLAN RX, WLAN TX and Bluetooth™
技术特性
- Integrates SP3T Switch and LNA with by-pass mode
- 12 dB gain,
- 1.8 dB NF
- 0.7 dB Bluetooth path loss
- 2x2x 0.6mm, QFN Package, MSL 1
- Lead free, Halogen free and RoHS compliant
订购信息 Ordering Information
| SE2601T |
QFN |
Samples |
| SE2601T-R |
QFN |
Tape and Reel |
| SE2601T-EK1 |
N/A |
Evaluation kit |
|
应用领域 APPLICATION
- IEEE802.11b DSSS WLAN
- IEEE802.11g,n OFDM WLAN
- Embedded applications

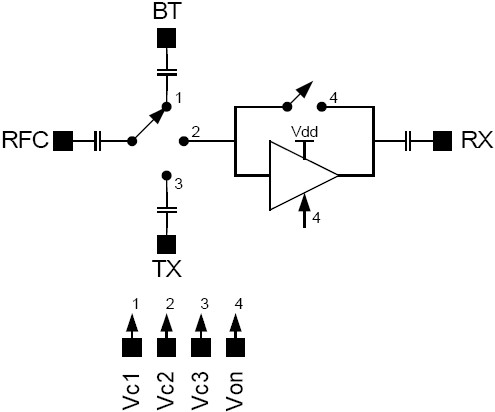

功能框图 Functional Block Diagram
|
