SE5007BT 5 GHz Front-End Module with Power Detector
The SE5007BT is a 5GHz front end module offering high linear power for wireless LAN applications. It incorporates a power detector for control of the output power. The SE5007BT offers a high level of integration for a simplified design, providing quicker time to market and higher application board production yield. The device integrates inter-stage match, a temperature compensated, load insensitive power detector with 20dB of dynamic range, a 3.8GHz notch filter, a T/R switch and an Rx LNA. For wireless LAN applications, the device meets the requirements of IEEE802.11a and delivers approximately 17dBm of linear output power. It also features a low linearity mode control to reduce current consumption at low power modes. The SE5007BT integrates the reference voltage generator, allowing for a true 1.8V CMOS compatible digital EN (enable) function to turn the power amplifier on and off.
技术特性
- 5GHz Front End Module with PA, LNA and T/R Switch
- Integrated power amplifier enable pin (VEN)
- Buffered, temperature compensated power detector
- High and Low-Linearity mode
- 3% EVM, @17dBm, 64 QAM, 54 Mbps
- 30 dB Typical Gain
- Lead Free and RoHS compliant, halogen free package
- 16 pin 3 mm x 3 mm x 0.6 mm QFN, MSL1
应用领域 APPLICATION
- 5 GHz WLAN (IEEE802.11a/g/n)
- Access Points, PCMCIA, PC cards, Handhelds
|
订购信息 Ordering Information
| Part Number |
Package |
Remark |
| SE5007BT |
16 Pin QFN |
Samples |
| SE5007BT-R |
16 Pin QFN |
Tape and Reel |
| SE5007BT-EK1 |
Evaluation Kit |
Standard |

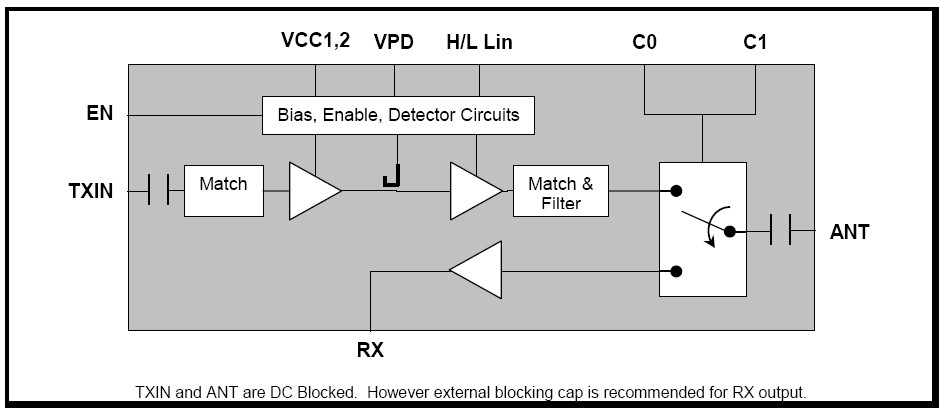

功能框图 Functional Block Diagram
|
