SE5008L 5 GHz WLAN Switch/LNA Front-End
The SE5008L is a single chip integrated front-end module (FEM) with a low noise amplifier and switch to complement WLAN chipsets with an integrated 5GHz Power Amplifier. The Low Noise Amplifier includes a bypass mode to avoid saturation in near-field applications. It is packaged in an compact 3mm x 3mm x 0.9mm QFN package. The LNA output is matched to 50 ohms and all ports are DC blocked.
技术特性
- Integrates SP2T Switch and LNA with by-pass mode
- 14 dB gain,
- 2.0 dB NF
- 0.8 dB loss on TX to ANT path
- 3x3x0.9mm, QFN Package, MSL 1
- 30dBm Maximum power at TX input
- Lead free, Halogen free and RoHS compliant
订购信息 Ordering Information
| SE5008L |
QFN |
Samples |
| SE5008L-R |
QFN |
Tape and Reel |
| SE5008L-EK1 |
N/A |
Evaluation kit |
|
应用领域 APPLICATION

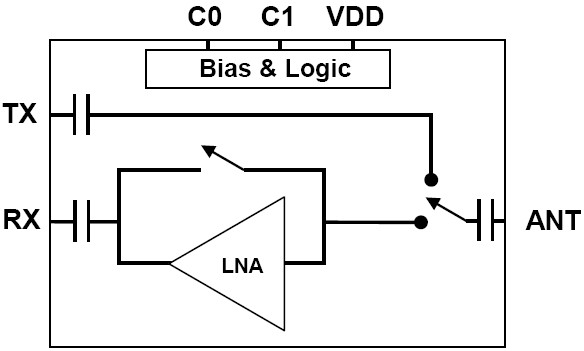

功能框图 Functional Block Diagram
|
