SKY12322-86LF 0.5-4.0 GHz Five-Bit Digital Attenuator (0.5 dB LSB)

The SKY12322-86LF is a monolithic, GaAs binary-weighted five-bit single positive control voltage digital attenuator. The device operates from 0.5 to 4.0 GHz. DC power consumption is very low, typically 100 μA maximum, with a control and supply voltage of 3 V. The SKY12322-86LF has an LSB of 0.5 dB and total attenuation of 15.5 dB. The two RF ports are bilateral; each can be used as the RF input or the RF output. An external supply voltage of 2.7 to 5.5 V is required.

技术特性

Broadband operation: 0.5 to 4.0 GHz
Positive voltage operation: 2.7 to 5.5 V
Low current consumption: <100 μA @ 3 V
LSB attenuation: 0.5 dB
Attenuation range: 15.5 dB
High IIP3: +45 dBm
Low insertion loss: 1.2 dB @ 900 MHz
Small, MSOP-10 (10-pin, 3 x 3 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY12322-86LF

应用领域 APPLICATION

Transceiver transmit automatic level control or receive automatic gain control in GSM, CDMA, WCDMA, WLAN, Bluetooth®, or Zigbee® land mobile radio base stations or terminal equipment
General-purpose signal attenuation in telecommunications and instrumentation applications

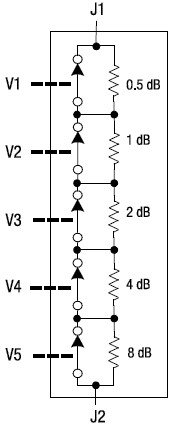

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY12322-86LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
