SKY12328-350LF 0.5-4.0 GHz Five-Bit Digital Attenuator (0.5 dB LSB)

The SKY12328-350LF is a monolithic, GaAs binary-weighted five-bit single positive control voltage digital attenuator. The device operates from 0.5 to 4.0 GHz. DC power consumption is very low, typically 100 μA maximum, with a control and supply voltage of 5.5 V. The SKY12328-350LF has an LSB of 0.5 dB and total attenuation of 15.5 dB. The two RF ports are bilateral; each can be used as the RF input or the RF output. An external supply voltage of 2.7 to 5.5 V is required.

技术特性
  • Broadband operation: 0.5 to 4.0 GHz
  • Attenuation range: 15.5 dB
  • LSB attenuation: 0.5 dB
  • Low insertion loss: 1 dB @ 900 MHz
  • Positive voltage operation: 2.7 to 5.5 V
  • Low current consumption: <100 μA @ 5 V
  • Small, QFN (16-pin, 3 x 3 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
  • SKY12328-350LF
应用领域 APPLICATION
  • Transceiver transmit automatic level control or receive automatic gain control in WiMAX, GSM, CDMA, WCDMA, WLAN, Bluetooth®, or Zigbee® land mobile radio base stations or terminal equipment
  • General-purpose signal attenuation in telecommunications and instrumentation applications
功能框图 Functional Block Diagram

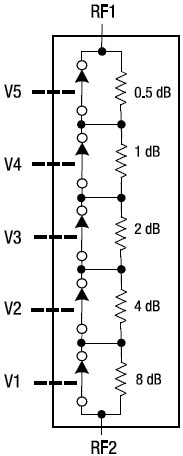

SKY12328-350LF 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY12328-350LF 数据资料DataSheet下载:pdf Rev.V2 2 页
