SKY12345-362LF 0.7-4.0 GHz Five-Bit Digital Attenuator with Serial-to-Parallel Driver (0.5 dB LSB)

The SKY12345-362LF is a GaAs FET five-bit digital attenuator I/C with a serial-to-parallel driver. The device is provided in a 4 x 4 mm, 24-pin Quad Flat No-Lead (QFN) package. The SKY12345-362LF is particularly suited for applications in which high attenuation accuracy, low insertion loss, and low intermodulation products are required.

技术特性

Broadband operation: 0.7 to 4.0 GHz
Attenuation: 15.5 dB
LSB attenuation: 0.5 dB
Low insertion loss: 1 dB @ 900 MHz
Positive voltage operation: 5 V
Integrated silicon serial-to-parallel driver
Small, QFN (24-pin, 4 x 4 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY12345-362LF

应用领域 APPLICATION

Base stations
Wireless and RF data
Wireless local loop gain control circuits

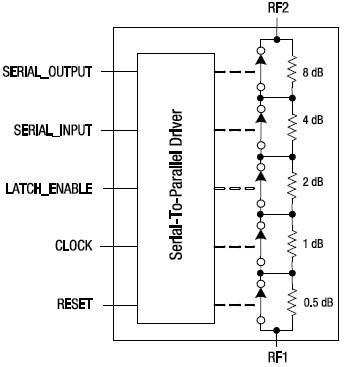

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY12345-362LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
