SKY12347-362LF DC-3.0 GHz Six-Bit Digital Attenuator with Serial or Parallel Driver (0.5 dB LSB)

The SKY12347-362LF is a GaAs pHEMT six-bit broadband digital attenuator with a 0.5 dB Least Significant Bit (LSB). A Transistor-to-Transistor Logic (TTL)/CMOS-compatible, dual-mode serial or parallel interface controller is integrated into the device. The attenuator features low insertion loss, excellent attenuation accuracy, a 31.5 dB attenuation range, and high linearity performance. The SKY12347-362LF is an ideal choice for a wide variety of cellular 3G and 4G infrastructure applications.

技术特性 Broadband operation: DC to 3.0 GHz Attenuation: 31.5 dB with 0.5 dB LSB TTL/CMOS-compatible serial, parallel, or latched parallel control interface Single supply voltage: +3.3 or +5 V Small, QFN (24-pin, 4 x 4 mm) package (MSL1, 260 °C per JEDEC J-STD-020) 订购信息 Ordering Information SKY12347-362LF

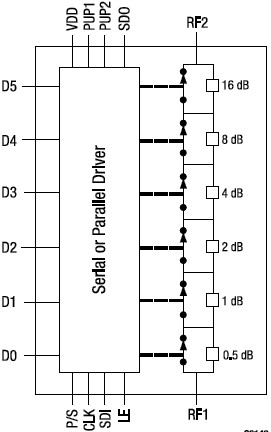

应用领域 APPLICATION Cellular, 3G/4G, WiMAX, and LTE Infrastructures 功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY12347-362LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
