SKY12348-350LF 0.1-3.0 GHz Four-Bit Digital Attenuator (1 dB LSB)

The SKY12348-350LF is a GaAs pHEMT four-bit broadband digital attenuator with a 1 dB Least Significant Bit (LSB). The attenuator features low insertion loss, excellent attenuation accuracy, a 15 dB attenuation range, and high linearity performance. The SKY12348-350LF is an ideal choice for a wide variety of cellular 3G and 4G infrastructure applications. Attenuation is controlled by four DC control pins (V1, V2, V3, and V4). Depending on the control bias, the attenuation state between the RF1 and RF2 pins can vary between a low insertion loss state or up to 15 dB.

技术特性

Broadband operation: 0.1 to 3.0 GHz
Attenuation: 15 dB with 1 dB LSB
+5 V supply voltage and +3.3 V control voltage
Small, QFN (16-pin, 3 x 3 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY12348-350LF

应用领域 APPLICATION

Cellular, 3G/4G, WiMAX, and LTE Infrastructures
RF and IF systems

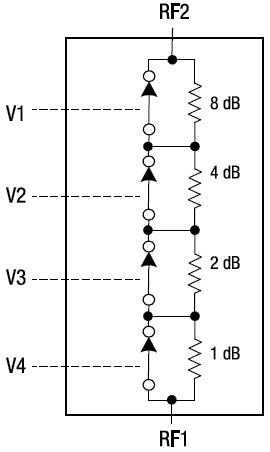

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY12348-350LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
