SKY12349-362LF 0.7-4.0 GHz Five-Bit Digital Attenuator with Serial-to-Parallel Driver (0.5 dB LSB)

The SKY12349-362LF is a GaAs FET five-bit digital attenuator I/C with a serial-to-parallel driver. The device is provided in a 4 x 4 mm, 24-pin Quad Flat No-Lead (QFN) package. The SKY12349-362LF is particularly suited for applications in which high attenuation accuracy, low insertion loss, and low intermodulation products are required.

技术特性
  • Broadband operation: 0.7 to 4.0 GHz
  • Attenuation: 15.5 dB
  • LSB attenuation: 0.5 dB
  • Low insertion loss: 1 dB @ 900 MHz
  • Positive voltage operation: 5 V
  • Integrated silicon serial-to-parallel driver
  • Small, QFN (24-pin, 4 x 4 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
  • SKY12349-362LF
应用领域 APPLICATION
  • Base stations
  • Wireless and RF data
  • Wireless local loop gain control circuits

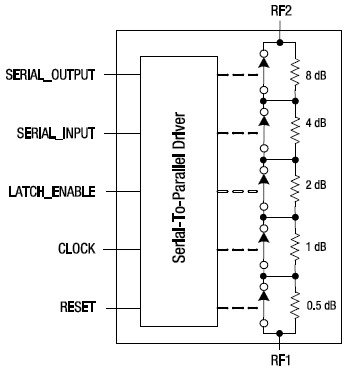

功能框图 Functional Block Diagram

SKY12349-362LF 功能框图
