SKY12408-321LF 50-600 MHz, 6 dB 100 Ω Differential Digital Attenuator

The SKY12408-321LF is a GaAs pHEMT two-bit attenuator I/C. The device is provided in a 3 x 3 mm 12-pin Quad Flat No-Lead (QFN) package. The SKY12408-321LF is particularly suited for 100 Ω differential systems for which high attenuation accuracy, low insertion loss, and low intermodulation products are required. The attenuator’s differential input and output impedance is 100 Ω. The device is controlled by two positive DC voltage control pins. The differential attenuator paths are controlled together and can be in either an insertion loss or a 6 dB attenuation state. In a differential system, the attenuator presents a 100 Ω impedance, but can be used as two single-ended attenuators, each with a 50 Ω impedance.

技术特性

Dual, positive voltage operation: 0/1.8-5.0 V
High bit accuracy: ±0.3 dB @ 200 MHz
Low insertion loss: 0.3 dB @ 200 MHz
Absorptive in 100 Ω differential systems
Small, QFN (12-pin, 3 x 3 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY12408-321LF

应用领域 APPLICATION

Cellular/3G infrastructure
IF/RF systems

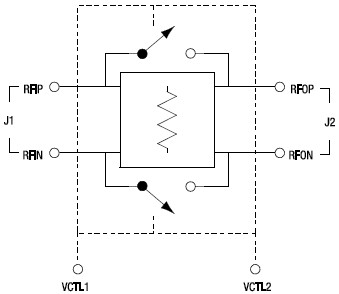

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY12408-321LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
