SKY13272-340LF 4 x 2 Switch Matrix 250 MHz–2.15 GHz

The SKY13272-340LF is a four-input to two-output switch in a low-cost QFN-20 4 x 4 mm package. The SKY13272-340LF enables 16 states, directing any of the four inputs to either of the two outputs. States are selected by four positive voltage control inputs. The switch can operate over the temperature range of -40 °C to +85 °C.

技术特性

Four inputs, two outputs
Any input can be directed to either output
Only four control lines required
High interport isolation: 40 dB typ. up to 0.95 GHz
Miniature QFN-20 4 x 4 mm package
Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260 °C
per JEDEC J-STD-020

订购信息 Ordering Information

SKY13272-340LF

应用领域 APPLICATION

DBS switching applications, cable modems, cable TV

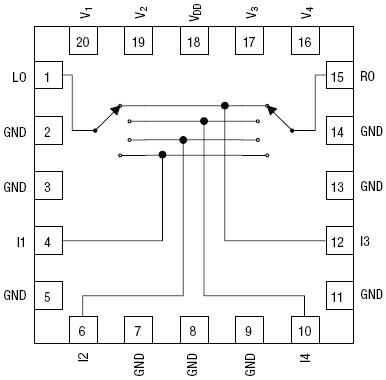

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY13272-340LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
