SKY13286-359LF 0.1-6.0 GHz High Isolation SPDT Absorptive Switch

The SKY13286-359LF is a GaAs pHEMT FET high-isolation, absorptive switch. The device is an ideal component for base station applications in which synthesizer isolation is critical.

技术特性
  • Single, positive voltage control: 0 to 3 and 0 to 5 V
  • High isolation 64 dB at 1 GHz and 2 GHz
  • Integrated silicon CMOS driver
  • Absorptive
  • Small, QFN (16-pin, 4 x 4 mm) Pb-free package (MSL1, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
  • SKY13286-359LF
应用领域 APPLICATION
  • GSM, PCS, WCDMA base stations
  • 2.4 and 5.8 GHz ISM devices
  • Wireless local loops

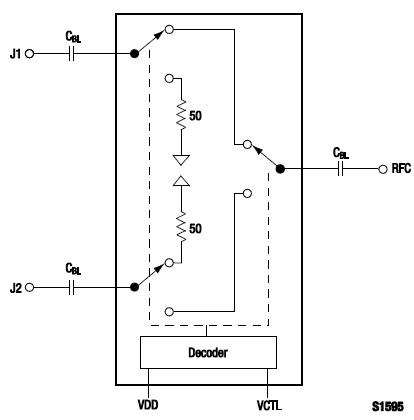

功能框图 Functional Block Diagram

SKY13286-359LF 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY13286-359LF 数据资料DataSheet下载:pdf Rev.V2 2 页
