SKY13321-360LF 0.1-3.0 GHz GaAs SPDT Switch

The SKY13321-360LF is a pHEMT GaAs FET I/C switch. The switch may be used in transmit/receive applications by connecting the RF common port (RFC, pin 7) to either the J1 or J2 port (pin 1 or 4, respectively) using a low loss path (i.e., a positive voltage applied to either V1 or V2 pins). The switch is manufactured in a compact, 2 x 2 mm, 8-pin exposed pad plastic Quad Flat No-Lead (QFN) package.

技术特性
  • Positive voltage control (0 to 1.8 V)
  • High isolation, 26 dB typical @ 1 GHz
  • Low loss, 0.4 dB typical @ 1 GHz
  • Excellent linearity performance, P-0.1dB insertion point
    @ +39 dBm
  • Small, QFN (8-pin, 2 x 2 mm) package (MSL1, 260 C per
    JEDEC J-STD-020)
订购信息 Ordering Information
  • SKY13321-360LF
应用领域 APPLICATION
  • Higher power applications with excellent linearity performance
  • WiMAX systems

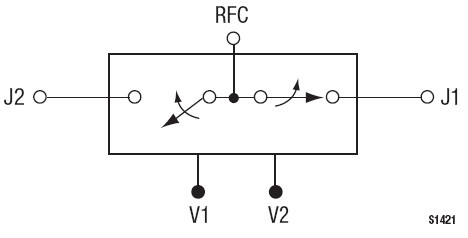

功能框图 Functional Block Diagram

SKY13321-360LF 功能框图
应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY13321-360LF 数据资料DataSheet下载:pdf Rev.V2 2 页
