SKY13335-381LF 0.1-6.0 GHz GaAs SPDT Switch

The SKY13335-381LF is a pHEMT GaAs FET I/C switch. The device features low insertion loss and positive voltage operation with very low DC power consumption. The switch is manufactured in a compact, low-cost 1.5 x 2.0 mm, 6-pin Micro Leadframe Package Dual (MLPD) package. The switch may be used in transmit/receive applications by connecting the RF common port (RFC, pin 5) to either the OUT1 or OUT2 port (pins 1 or 3, respectively) using a low-loss path (i.e., a positive voltage applied to either the VCTL1 or VCTL2 pins). The switch is a reflective short on the isolated port.

技术特性

Positive voltage control
Control voltage high = 1.8 to 5.0 V
Broadband, 0.1 to 6.0 GHz
Very low insertion loss, 0.40 dB typical @ 2.5 GHz
High isolation, 27 dB typical @ 2.5 GHz
Excellent linearity performance, P1dB = +29 dBm @ 3 V
Ultra-miniature, MLPD (6-pin, 1.5 x 2.0 x 0.5 mm) package
(MSL1, 260 􀁱C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY13335-381LF

应用领域 APPLICATION

WLAN 802.11 a/b/g networks
WLAN repeaters
ISM band radios
Low power transmit receive systems

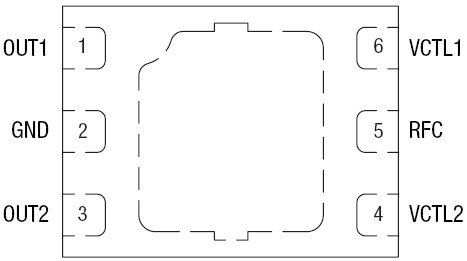

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY13335-381LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
