SKY13351-378LF 20 MHz-6.0 GHz GaAs SPDT Switch

The SKY13351-378LF is a pHEMT GaAs FET I/C switch. The switch may be used in transmit/receive applications by connecting the RF common port (INPUT, pin 5) to either the OUTPUT1 or OUTPUT2 port (pin 1 or 3, respectively) using a low loss path (i.e., a positive voltage applied to either VCTL1 or VCTL2 pins). The switch is “reflective short” on the isolated port. The switch is manufactured in a compact, 1 x 1 mm, 6-pin exposed pad plastic Micro Leadframe Package Dual (MLPD) package.

技术特性
  • Positive voltage control (0 and 1.8 V to 0 and 5.0 V)
  • Broadband frequency range: 20 MHz to 6.0 GHz
  • Very low insertion loss, 0.35 dB typical @ 2.45 GHz
  • High isolation, 24 dB typical @ 2.45 GHz
  • Excellent linearity performance, IP0.5dB = +30 dBm
  • Ultra-miniature, MLPD (6-pin, 1 x 1 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
  • SKY13351-378LF
应用领域 APPLICATION
  • WLAN 802.11 a/b/g/n networks
  • WLAN repeaters
  • ISM band radios
  • Low power transmit receive systems
功能框图 Functional Block Diagram

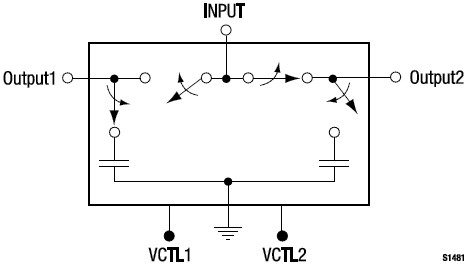

SKY13351-378LF 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY13351-378LF 数据资料DataSheet下载:pdf Rev.V2 2 页
