SKY13355-374LF 0.1-6.0 GHz DPDT Switch

The SKY13355-374LF is a pHEMT GaAs Double-Pole, Double-Throw (DPDT) switch designed for 2.4 and 6.0 GHz, dual-band wireless LAN applications. The switch provides high linearity performance, low insertion loss, and high isolation in both frequency bands. Switching is controlled by two voltage inputs (V1 and V2). Depending on the logic voltage level applied to the control pins, the ANT1 and ANT2 pins connect to one of two switched RF outputs (RX or TX) through a low insertion loss path while maintaining a high isolation path to the alternate port. The switch is manufactured in a compact, 1.5 x 1.5 mm, 6-pin exposed pad plastic Micro Leadframe Package Dual (MLPD) package.

技术特性
  • Broadband frequency range: 0.1 to 6.0 GHz
  • Positive control voltage range: 1.8 to 5.0 V
  • Low insertion loss: 0.6 dB typical @ 2.5 GHz
  • High isolation: 23.5 dB typical @ 2.5 GHz
  • P1dB: +33 dBm typical @ 3 V
  • Small, MLPD (6-pin, 1.5 x 1.5 mm) Pb-free package (MSL1, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
  • SKY13355-374LF
应用领域 APPLICATION
  • Dual-band wireless LANs (802.11 a/b/g/n)
  • Diversity antenna switching
引脚定义

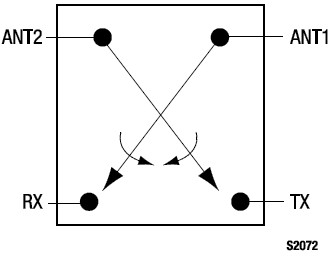

SKY13355-374LF 引脚定义

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY13355-374LF 数据资料DataSheet下载:pdf Rev.V2 2 页
