SKY13358-388LF 0.1 – 3.0 GHz SP5T Switch

The SKY13358-388LF is a GaAs pHEMT Single-Pole, Five-Throw (SP5T) switch with an internal CMOS decoder. The high linearity performance and low insertion loss achieved by the SKY13358-388LF make it an ideal choice for cellular infrastructure applications. Switching is controlled by three CMOS/TTL compatible control voltage inputs (V1, V2, and V3). Depending on the logic voltage level applied to the control pins, the RFC (RF common) pin is connected to one of five switched RF outputs (RF1, RF2, RF3, RF4, or RF5) through a low insertion loss path while the path between the RFC pin and the other RF pins is in a high isolation state. External DC blocking capacitors are required on the RF paths. The SKY13358-388LF is manufactured in a compact, 16-pin 2.3 x 2.3 mm Quad Flat No-Lead (QFN) package.

技术特性

Broadband frequency range: 0.1 to 3.0 GHz
Low insertion loss: 0.8 dB typical @ 2.2 GHz
High isolation: 24 dB typical @ 2.2 GHz
CMOS/TTL compatible control voltages: 0/1.5-3.5 V
Small, QFN (16-pin, 2.3 x 2.3 mm) Pb-free package (MSL1, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY13358-388LF

应用领域 APPLICATION

2G/3G cellular infrastructure

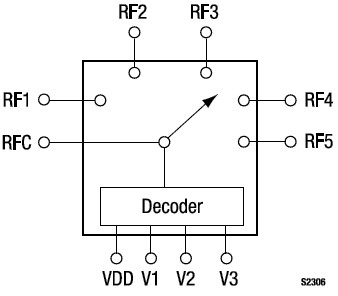

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY13358-388LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
