SKY13362-389LF 0.4-2.7 GHz GaAs SP10T Switch

The SKY13362-389LF is a GaAs pHEMT single-pole, ten-throw (SP10T) antenna switch with an integrated CMOS decoder and dual low-pass harmonic filters. The switch has five transmit/receive ports that make it ideal for any combination of 2G/3G multimode cellular applications. Using advance switching technologies, the SKY13362-389LF maintains low insertion loss and high isolation for both transmit and receive switching paths. The switch also exhibits an excellent triple beat ratio and 2nd/3rd order modulation distortion performance.

技术特性

Broadband frequency range: 0.4 to 2.7 GHz
Four CMOS/TTL control voltages (0/1.35 to 3.1 V)
Single, positive DC power supply (2.7 to 3.3 V)
Excellent triple beat ratio performance
Integrated, low-pass harmonic filter for GSM transmit paths
Integrated CMOS decoder
Small QFN (26-pin, 3.0 x 3.8 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

应用领域 APPLICATION

2G/3G multimode cellular handsets (UMTS, CDMA2000, EDGE, GSM)
Embedded data cards

订购信息 Ordering Information

SKY13362-389LF

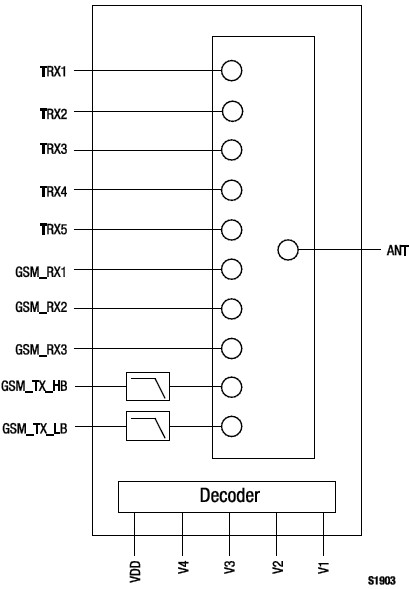

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY13362-389LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
