SKY13374-397LF 300 kHz-6.0 GHz SPDT Switch

The SKY13374-397LF is a CMOS Silicon-on-Insulator (SOI) single-pole, double-throw (SPDT) WCDMA band switch. The high linearity performance and low insertion loss achieved by the device makes it an ideal choice for medium to high power WCDMA handset and data card applications. The high 0.1 dB Input Compression Point (IP0.1dB) and advance proprietary fabrication process enable exceptional WCDMA harmonic and Adjacent Channel Power (ACP) performance. Excellent insertion loss and isolation is maintained over WCDMA bands 1 to 6 and 8 to 11.

技术特性
  • Broadband frequency range: 300 kHz to 6.0 GHz
  • Low insertion loss: 0.35 dB @ 1 GHz, 0.8 dB @ 6 GHz
  • No external DC blocking capacitors required
  • Positive low control voltage: 1.65 to 3.0 V (VCTRL), 2.5 to 4.8 V (VBATT)
  • Small, QFN (12-pin, 2 x 2 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
  • SKY13374-397LF
应用领域 APPLICATION
  • Dual-band wireless LANs (802.11 a/b/g/n)
  • Diversity antenna switching
  • WCDMA handsets and data cards
功能框图 Functional Block Diagram

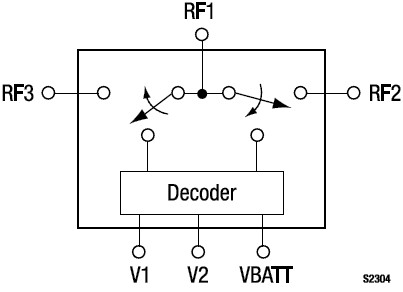

SKY13374-397LF 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY13374-397LF 数据资料DataSheet下载:pdf Rev.V2 2 页
