SKY13385-460LF 0.1-3.5 GHz SP3T Switch

The SKY13385-460LF is a CMOS silicon-on-insulation (SOI), single-pole, triple-throw (SP3T) switch. The high linearity performance and low insertion loss makes the device an ideal choice for WLAN (802.11 b/g) and Bluetooth® applications in the 2.4 to 2.5 GHz frequency range.

技术特性

Broadband frequency range: 0.1 to 3.5 GHz
Low insertion loss: 0.5 dB @ 2.45 GHz
High isolation: 32 dB up to 2.45 GHz
No external DC blocking capacitors required
Positive low voltage control: VCTL = 1.650 to 3.465 V, VDD = 2.5 to 5.5 V
Small, QFN (12-pin, 2 x 2 mm, 0.5 mm pitch) package (MSL1, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY13385-460LF

应用领域 APPLICATION

802.11 b/g WLANs
Bluetooth®

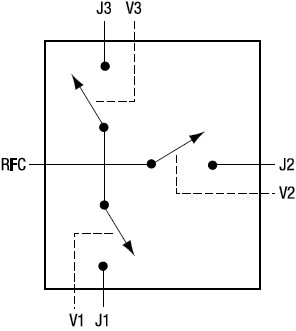

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY13385-460LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
