SKY13386-000 0.1-4.0 GHz SP3T Switch

The SKY13386-000 is a GaAs pHEMT Single-Pole, Triple-Throw (SP3T) switch designed for 2.4 GHz WLAN applications. The SKY13386-000 is manufactured in a compact, 650 x 650 μm, 8-bump Chip Scale Package (CSP). The small footprint provides the industry’s smallest PCB area needed to implement an integrated SP3T switch.

技术特性

Broadband frequency range: 0.1 GHz to 4.0 GHz
Positive control voltages: 2.7 V to 3.6 V
Low insertion loss: 0.50 dB typical @ 2.5 GHz
High isolation: 25 dB typical @ 2.5 GHz
IP0.5dB: +29 dBm typical @ 3 V
Small CSP (8-bump, 650 x 650 μm) 200 μm ball pitch package

订购信息 Ordering Information

SKY13386-000

应用领域 APPLICATION

WLAN b/g

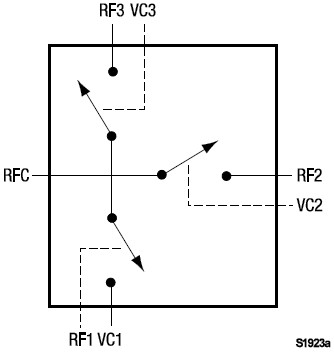

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY13386-000 数据资料DataSheet下载:pdf	Rev.V2	2 页
