SKY13388-465LF 0.1-2.7 GHz SP4T Switch With Integrated Logic Decoder

The SKY13388-465LF is a symmetrical, single-pole, four-throw (SP4T) switch. The device is designed for broadband, medium power switching applications that demand high linearity and low insertion loss. This is a general purpose switch optimized for 3GPP bands from 0.70 to 2.7 GHz. The switch is manufactured with an industry-leading Silicon-on-Insulator (SOI) process. The SKY13388-465LF features on-chip energy management circuitry that uses only two control lines for the switch operation. The low current consumption makes the device suitable for battery-operated applications.

技术特性

Broadband frequency range: 0.1 GHz to 2.7 GHz
Low insertion loss: 0.60 dB typical @ 2.2 GHz, 0.65 dB typical @ 2.7 GHz
High isolation: >30 dB typical @ 1.0 GHz, 23 dB typical @ 2.7 GHz
VDD: 2.5 to 5.5 V
IIP3: +65 dBm typical @ 0.90 GHz
Good 2nd and 3rd harmonic performance >75 dBc @ 2.2 GHz
Low voltage compatible (VHIGH = 1.8 V)
No external components required
Small, QFN (12-pin, 2 x 2 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY13388-465LF

应用领域 APPLICATION

WCDMA/CDMA/LTE front-end/antenna switches
Diversity receive antenna switches

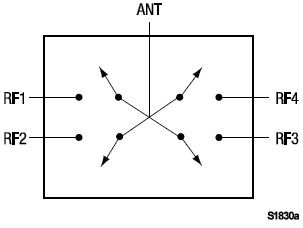

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY13388-465LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
