SKY13392-359LF 0.02-4.0 GHz High Isolation SP4T Absorptive Switch With Decoder
The SKY13392-359LF is a symmetrical, single-pole, four-throw (SP4T) switch. The switch is intended for GSM/CDMA/WCDMA/LTE cellular infrastructure applications. The impedance of the RF ports in isolation is 50 Ω at frequencies above 500 MHz. The SKY13392-359LF is manufactured using Skyworks state-of-the-art GaAs pHEMT process. The SKY13392-359LF features integrated logic that uses only two control lines for switch operation.
技术特性
订购信息 Ordering Information
|
应用领域 APPLICATION

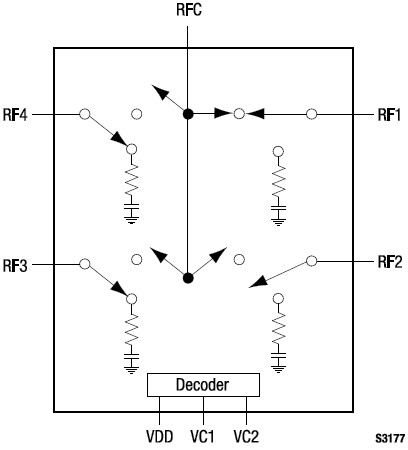

功能框图 Functional Block Diagram
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| SKY13392-359LF 数据资料DataSheet下载:pdf | Rev.V2 | 2 页 |
