SKY13397-388LF 0.1 – 3.0 GHz DP5T Switch

The SKY13397-388LF is a double-pole, five-throw (DP5T) switch designed for broadband, high-power switching applications that demand low harmonics and low insertion loss. The switch is optimized for 3G WCDMA applications. The SKY13397-388LF features integrated logic that uses only two control lines for switch operation. The low current consumption of the device makes it very suitable for battery-operated applications. The switch is manufactured using a state of the art Silicon on Insulator (SOI) process, and is provided in a compact Quad Flat No-Lead (QFN) 2.3 x 2.3 mm package.

技术特性

Broadband frequency range: 0.1 to 3.0 GHz
High IP0.1dB: +38 dBm
Low insertion loss: 0.35 dB @ 1.0 GHz and 0.4 dB @ 2.0 GHz
High isolation: >30 dB @ 1.0 GHz and 2.0 GHz
Operating battery voltage range: 2.5 to 5.0 V
Small, QFN (16-pin, 2.3 x 2.3 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

应用领域 APPLICATION

WCDMA distribution band switches
Broadband, high power switches
Antenna tuning switches

订购信息 Ordering Information

SKY13397-388LF

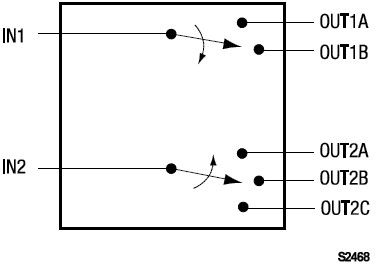

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY13397-388LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
