SKY13398-000 0.02 – 6.0 GHz pHEMT GaAs SP3T Switch

The SKY13398-000 is a GaAs pHEMT Single-Pole, Triple-Throw (SP3T) antenna switch that operates in the 0.1 to 6.0 GHz frequency range. Switching between the antenna (RFC signal) and the RF1, RF2, and RF3 ports is accomplished with three control voltages (VC1, VC2, and VC3). This switch is a reflective short when in the isolation state. The low loss, high isolation, high linearity, small size, and low cost make this switch ideal for all WLAN and Bluetooth systems operating in the 2.4 to 2.5 and 4.9 to 5.9 GHz bands.

技术特性

Positive low voltage control: 0/1.8 to 5.0 V
Low insertion loss: 0.8 dB @ 2.5 GHz
Excellent linearity performance: P1dB = +33 dBm
Advanced pHEMT process
Bare pHEMT die: 650 x 450 x 127 μm

订购信息 Ordering Information

SKY13398-000

应用领域 APPLICATION

802.11 a/b/g/n WLAN networks
Bluetooth® systems

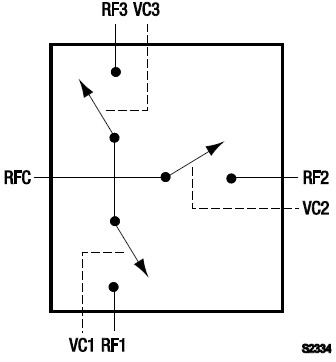

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY13398-000 数据资料DataSheet下载:pdf	Rev.V2	2 页
