SKY13408-465LF 1.0 – 6.0 GHz SP3T Switch, 50 Ω Terminated

The SKY13408-465LF is a GaAs pHEMT Single-Pole, Triple-Throw (SP3T) high power switch with 50 Ω terminated outputs. The high linearity performance and low insertion loss achieved by the SKY13408-465LF make it an ideal choice for 802.11a/c, WiMAX, and higher power WLAN applications such as access points. The switch is manufactured in a compact, 2 x 2 mm, 12-pin Quad Flat No-Lead (QFN) package.

技术特性

50 Ω matched RF ports in all states from 4.5 to 6.0 GHz
Low insertion loss: 0.7 dB @ 2.5 GHz and 1.1 dB @ 5.85 GHz
High isolation: 30 dB @ 2.5 GHz and 24.5 dB @ 5.85 GHz
IP1dB: +34 dBm
Small, QFN (12-pin, 2 x 2 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY13408-465LF

应用领域 APPLICATION

WiMAX 802.16
Dual-band WLANs (802.11 a/b/g/n)
LTE/4G systems
WLAN 802.11a/c
5 GHz video distribution

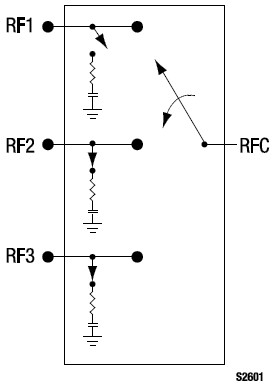

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY13408-465LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
