SKY13410-365LF 0.25 - 2.15 GHz 4x2 Switch Matrix with Tone/Voltage Decoder

The SKY13410-365LF is a four-input to two-output switch matrix intended for Direct Broadcast Satellite (DBS) switching and cable TV/modem applications. The SKY13410-365LF enables 16 states, directing any of the four inputs to either of the two outputs. Switch states are selected using tone and voltage signals together with logic levels applied to mode control inputs. The switch can operate over a temperature range of –40 °C to +85 °C. The SKY13410-365LF is manufactured in a compact, 4 x 4 mm, 20-pin Quad Flat No-Lead (QFN) package.

技术特性
  • Broadband frequency range: 0.25 to 2.15 GHz
  • Tone and voltage, or mode control switching
  • High isolation: 40 dB typical @ 900 MHz
  • Four RF inputs, two RF outputs
  • Low current consumption: 1.5 mA typical @ 5 V
  • Miniature QFN (20-pin, 4 x 4 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
  • SKY13410-365LF
应用领域 APPLICATION
  • DBS switching systems
  • Cable TV/modems

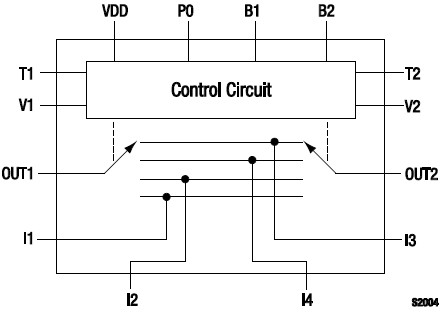

功能框图 Functional Block Diagram

SKY13410-365LF 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY13410-365LF 数据资料DataSheet下载:pdf Rev.V2 2 页
