SKY13411-374LF 0.1-6.0 GHz DPDT Switch

The SKY13411-374LF is a pHEMT GaAs Double-Pole, Double-Throw (DPDT) switch designed for dual-band wireless LAN applications. The switch provides high linearity performance, low insertion loss, and high isolation. Switching is controlled by two voltage inputs (V1 and V2). Depending on the logic voltage level applied to the control pins, the ANT1 and ANT2 pins connect to one of two switched RF outputs (RX or TX) through a low insertion loss path while maintaining a high isolation path to the alternate port. The switch is manufactured in a compact, 1.5 x 1.5 mm, 6-pin exposed pad plastic Micro Leadframe Package Dual (MLPD) package.

技术特性

Broadband frequency range: 0.1 to 6.0 GHz
Positive control voltage range: 1.8 to 5.0 V
Low insertion loss: 0.6 dB typical @ 2.5 GHz
High isolation: 23.5 dB typical @ 2.5 GHz
P1dB: +31 dBm typical @ 3 V
Small, MLPD (6-pin, 1.5 x 1.5 mm) Pb-free package (MSL1, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY13411-374LF

应用领域 APPLICATION

Dual-band wireless LANs (802.11 a/b/g/n)
Diversity antenna switching

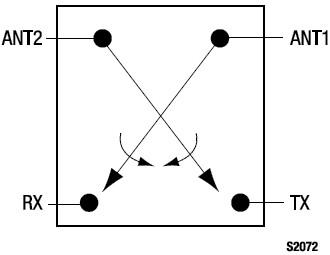

引脚定义
