SKY13419-365LF 0.25-2.15 GHz 4x2 Switch Matrix with Tone/Voltage Detector

The SKY13419-365LF is a four-input to two-output switch matrix intended for Direct Broadcast Satellite (DBS) switching and cable TV/modem applications. The SKY13419-365LF enables any of the four inputs to either of the two outputs. Switch states can be selected using tone and voltage signals together with vertical-horizontal mirror control inputs, and the logic control signal (LGCTL, pin 9). The vertical/horizontal mirror control signal (OMR, pin 18) inverts the logic for the I2 and I4 signals (pins 16 and 20, respectively), and for the I1 and I3 signals (pins 14 and 2, respectively). The logic control signal inverts the logic for the I1 and I2 signals, and for the I3 and I4 signals.

技术特性

Broadband frequency range: 0.25 to 2.15 GHz
Tone and voltage control switching
High isolation: 40 dB @ 900 MHz
Four RF inputs, two RF outputs
Low current consumption: 2.5 mA @ 5 V
Alternate truth Table logic using LGCTL pin
Miniature QFN (20-pin, 4 x 4 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY13419-365LF

应用领域 APPLICATION

DBS switching systems
cable TV/modems

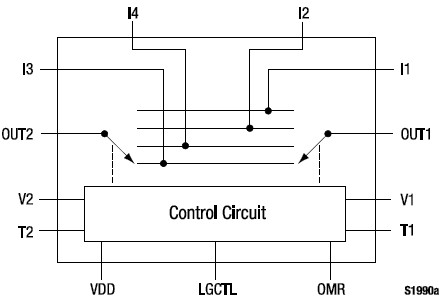

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY13419-365LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
