SKY13421-486LF 0.1-3.0 GHz DPxDT 2:1 Differential Switch

The SKY13421-486LF is a pHEMT GaAs Double-Pole, Double-Throw (DPxDT) switch designed for cellular infrastructure band switching applications. This device is a paired DPDT switch, controlled synchronously, that includes two Single-Pole, Double-Throw (SPDT) switches with RF lines that cross inside the chip. The internal crossed switch arrangement is designed to switch balanced RF filters. Switching is controlled by a single control voltage. Depending on the logic voltage level applied to the control pin (VCTL), the RFCA and RFCB pins are each connected to one of two switched RF outputs (RF1A, RF1B, RF2A, or RF2B) using a low insertion loss path, while maintaining a high isolation path to the alternate port. DC blocking capacitors are required on all RF ports. The switch is manufactured in a compact, 1.6 x 1.6 mm, 14-pin exposed pad plastic Quad Flat No-Lead (QFN) package.

技术特性
  • Broadband frequency range: 0.1 to 3.0 GHz
  • Single positive voltage control: 1.3 V to 5.0 V
  • Low insertion loss: 0.3 dB typical @ 1 GHz; 0.4 typical @ 2 GHz
  • High isolation: 28 dB typical @ 1 GHz; 22 dB typical @ 2 GHz
  • High P0.2dB
  • Low phase error: 6 degrees typical @ 2 GHz
  • Ultra-miniature, QFN (14-pin, 1.6 x 1.6 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
  • SKY13421-486LF
应用领域 APPLICATION
  • GSM, DCS, PCS, CDMA, WCDMA, and TD-SCDMA differential filter switching

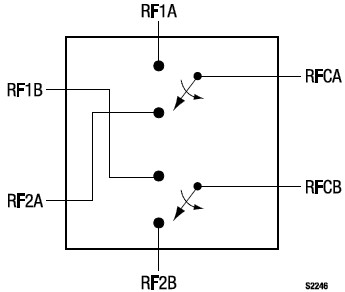

功能框图 Functional Block Diagram

SKY13421-486LF 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY13421-486LF 数据资料DataSheet下载:pdf Rev.V2 2 页
