SKY13431-374LF 0.5 – 6.0 GHz SPDT Switch, 50 Ω Terminated

The SKY13431-374LF is a GaAs pHEMT Single-Pole, Double-Throw (SPDT) high power switch with 50 Ω terminated outputs. The high linearity performance and low insertion loss achieved by the SKY13431-374LF make it an ideal choice for WiMAX and higher power WLAN applications such as access points. This part is designed for use in WLAN systems using discrete Power Amplifier (PA) and Low-Noise Amplifier (LNA) implementations. The 50 Ω impedance of the switch in the “off” state ensures good isolation regardless of the match to which the switch is connected.

技术特性

50 Ω matched RF ports in all states
Low insertion loss: 0.5 dB @ 2.5 GHz
High isolation: 25 dB @ 2.5 GHz
IP1dB: +36 dBm
Small, DFN (6-pin, 1.5 x 1.5 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY13431-374LF

应用领域 APPLICATION

Dual-band WLANs (802.11 a/b/g/n)
WLAN 802.11a/c for video distribution
LTE/4G systems
WiMAX 802.16

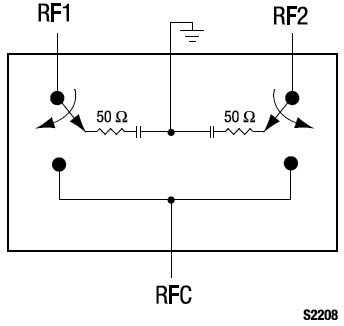

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY13431-374LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
