SKY65008 250 – 2700 MHz Linear, Low Current Power Amplifier Driver
SKYWORKS SKY65008 is a high performance, ultra-wideband power amplifier driver with superior output power, linearity, low current consumption, and efficiency. The high linearity and superior Adjacent Channel Power Rejection/Adjacent Channel Leakage Ratio (ACPR/ACLR) performance make the SKY65008 ideal for use in the driver stage of infrastucture transmit chains.
技术特性
- Wideband frequency range: 250 to 2700 MHz
- High efficiency: PAE 48%
- High gain: 18 dB
- Single DC supply, +3 V
- MCM (3-pin, 4 x 4 mm) Pb-free package (MSL3, 250 °C per
JEDEC J-STD-0-20)
订购信息 Ordering Information
| SKY65008 250-2700 MHz Linear, Low Current PA Driver |
SKY65008-21 |
TW13-D781-001 (836 MHz) TW13-D782-001 (900 MHz) |
|
应用领域 APPLICATION
- AMPS, PCS, DCS, 2.5G, 3G, WCDMA, WLANs
- ISM band
- Fixed WCS
- 802.11b/g WLANs
- WiMax

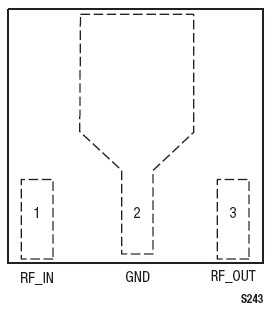

功能框图 Functional Block Diagram
|
