SKY65013-70LF 0.1-7.0 GHz InGaP Cascadable Amplifier
The SKY65013 is a general-purpose, broadband amplifier fabricated from SKYWORKS InGaP HBT process and packaged in a plastic Micro-X package. The amplifier’s input and output impedances are 50 Ω, which allows these amplifiers to be cascaded without external impedance matching networks. The typical -3 dB bandwidth of the SKY65013 is DC–4 GHz. This amplifier is also available in the miniature SC-88 package (SKY65013-92LF) and the SOT-89 package (SKY65013-70LF).
技术特性
- Broadband frequency range: 0.1 to 7.0 GHz
- Small signal gain = 12.5 dB typical @ 2 GHz
- High OIP3: +29 dBm typical
- OP1dB = +12.5 dBm typical @ 2 GHz
- Input and output impedance: 50 Ω nominal
- Single, positive DC supply voltage
- SOT-89 (4-pin, 1.5 x 4.0 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
| SKY65013-70LF Low Noise Amplifier |
SKY65013-70LF |
SK40753_Rev1 |
|
应用领域 APPLICATION
- Wireless infrastructure: WLAN, WiMAX, broadband, cellular base stations
- Test instrumentation
- • Cable television

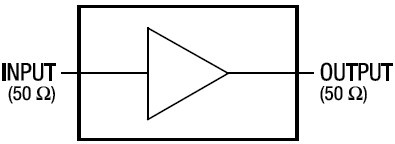

功能框图 Functional Block Diagram
|
