SKY65014-70LF 0.1-7.0 GHz InGaP Cascadable Amplifier
SKYWORKS SKY65014-70LF is a general purpose, broadband amplifier. The device is fabricated from SKYWORKS InGaP HBT process and packaged in a miniature Small Outline Transistor (SOT-89) package. The device’s 50 Ω input and output impedance allow it to be easily cascaded without external impedance matching networks. The typical –3 dB bandwidth of the SKY65014-70LF is 0.1 to 6.0 GHz. The amplifier is also available in a plastic micro-X package (SKY65014-214LF) and an SC-88 package (SKY65014-92LF).
技术特性
- Broadband frequency range: 0.1 to 6.0 GHz
- Small signal gain = 16 dB typical @ 2 GHz
- High OIP3: +36 dBm typical
- OP1dB = +18 dBm typical @ 2 GHz
- Input and output impedance: 50 Ω nominal
- Single, positive DC supply voltage
- SOT-89 (4-pin, 1.5 x 4.0 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
| SKY65014-70LF Low Noise Amplifier |
SKY65014-70LF |
SK40753 |
|
应用领域 APPLICATION
- Wireless infrastructure: WLAN, HLAN, DBS, broadband, cellular base stations
- Test instrumentation
- Cable television

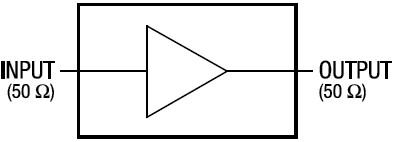

功能框图 Functional Block Diagram
|
