SKY65015-70LF 0.1-6.0 GHz InGaP Cascadable Amplifier

SKYWORKS SKY65015-70LF is a general purpose, broadband amplifier. The device is fabricated from SKYWORKS InGaP HBT process and packaged in a miniature Small Outline Transistor (SOT-89) package. The device’s 50 Ω input and output impedance allow it to be easily cascaded without external impedance matching networks. The typical –3 dB bandwidth of the SKY65015-70LF is 0.1 to 6.0 GHz. The amplifier is also available in a plastic micro-X package (SKY65015-214LF) and an SC-88 package (SKY65015-92LF).

技术特性
  • Broadband frequency range: 0.1 to 6.0 GHz
  • Small signal gain = 18 dB typical @ 2 GHz
  • High OIP3: +35 dBm typical
  • OP1dB = +17 dBm typical @ 2 GHz
  • Input and output impedance: 50 Ω nominal
  • Single, positive DC supply voltage
  • SOT-89 (4-pin, 1.5 x 4.0 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
SKY65015-70LF Low Noise Amplifier  SKY65015-70LF  SK407
应用领域 APPLICATION
  • Wireless infrastructure: WLAN, HLAN, DBS, broadband, cellular base stations
  • Test instrumentation
  • Cable television
功能框图 Functional Block Diagram

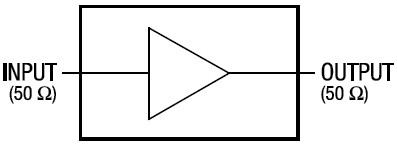

SKY65015-70LF 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY65015-70LF 数据资料DataSheet下载:pdf Rev.V2 2 页
