SKY65048-360LF 0.7-1.2 GHz Low Noise Amplifier
The SKY65048-360LF is a high performance, two-stage ultra-low noise amplifier. The device is fabricated from SKYWORKS advanced pHEMT process and is provided in a 2 x 2 mm, 8-pin Quad Flat No-Lead (QFN) package. The device features excellent input and output return loss, an integrated interstage matching network, and integrated source inductors for 1st and 2nd stage transistors. The amplifier’s ultralow Noise Figure (NF), high gain, and excellent 3rd Order Intercept point (IP3) allow it to be used in various receiver and transmitter applications.
技术特性
- Ultra-low Noise Figure = 0.65 dB @ 900 MHz
- Excellent input and output return loss
- Adjustable gain = 16.5 to 21.5 dB @ 900 MHz
- High output OIP3 = +35.5 dBm @ 85 mA
- OP1dB = +18.5 dBm @ 900 MHz
- Single, positive DC supply voltage
- Adjustable supply current, 30 to 100 mA
- Small, QFN (8-pin, 2 x 2 mm) package (MSL1, 260 C per
JEDEC J-STD-020)
订购信息 Ordering Information
| SKY65048-360LF Low Noise Amplifier |
SKY65048-360LF (Pb-free and Green package) |
SKY65048-360LF (880-915 MHz) |
|
应用领域 APPLICATION
- Wireless infrastructure: GSM, CDMA, WCDMA, ISM, and
TD-SCDMA
- Ultra-low noise applications

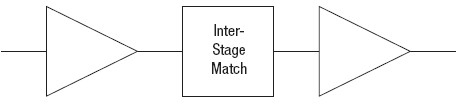

功能框图 Functional Block Diagram
|
