SKY65095-360LF 1600-2100 MHz Low-Noise Power Amplifier Driver
SKYWORKS SKY65095-360LF is a high performance, ultrawideband Power Amplifier (PA) driver with superior output power, low noise, and linearity. The device provides excellent Noise Figure (NF) and high output power at 1 dB compression, which makes the SKY65095-360LF ideal for use in the driver stage of infrastructure transmit or receive chains.
技术特性
- Wideband frequency range: 1600 to 2100 MHz
- Low Noise Figure: 4.5 dB
- High IIP3 up to +32 dBm
- Output P1dB = +28.5 dBm
- High gain: +14.5 dBm
- Single DC supply: +5 V
- Enable voltage: +3.3 V
- On-chip bias circuit
- DFN (8-pin, 2 x 2 mm) package (MSL1, 260 °C per
JEDEC J-STD-020)
订购信息 Ordering Information
| SKY65095-360LF Low Noise PA Driver |
SKY65095-360LF |
1626 to 1660 MHz: TW18-D530-041 1710 to 1785 MHz: TW18-D530-051 |
|
应用领域 APPLICATION
- 2.5G, 3G, 4G wireless infrastructure transceivers
- ISM band transmitters
- WCS fixed wireless
- 3GPP LTE

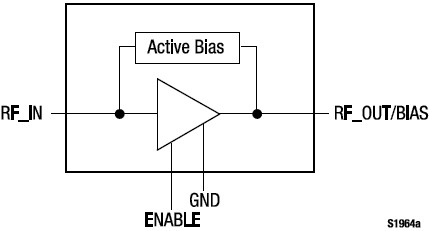

功能框图 Functional Block Diagram
|
