SKY65120-21 2110-2170 MHz High Linearity, 2 W Power Amplifier

SKYWORKS SKY65120-21 is a fully-matched, surface mount Power Amplifier (PA) designed for WCDMA, PCS, DCS, UTMS, and TD-SCDMA radio, repeaters, transmitters, and WCS fixed wireless units operating in the 2110 to 2170 MHz bandwidth. All active circuitry in the module is contained in a single GaAs Microwave Monolithic Integrated Circuit (MMIC). The device is manufactured using SKYWORKS AlGaAs Heterojunction Bipolar Transistor (HBT) process, which allows for single supply operation while maintaining high efficiency and good linearity. A block diagram of the SKY65120-21 is shown in Figure 1. The device package and pinout for the 20-pin MCM are shown in Figure 2.

技术特性
  • High linearity: OIP3 > +48 dBm
  • OP1dB = +33.5 dBm
  • ACLR = –45 dBc for POUT = +25.4 dBm
  • High efficiency: PAE = 42%
  • High gain = 24.6 dB
  • Internal RF match and bias circuits
  • Single DC supply: 5 V
  • Small footprint, MCM (20-pin, 6 x 6 mm) SMT package (MSL3, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
SKY65120-21 Power Amplifier  SKY65120-21  TW16-D190-001
应用领域 APPLICATION
  • WCDMA, PCS, DCS, UMTS, TD-SCDMA
  • Repeaters
  • ISM band transmitters
  • WCS fixed wireless systems

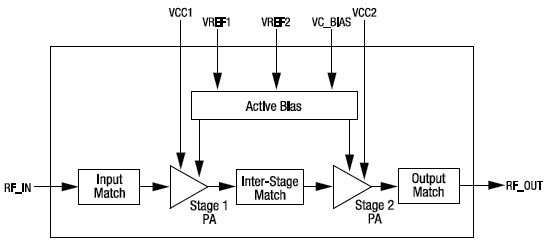

功能框图 Functional Block Diagram

SKY65120-21 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY65120-21 数据资料DataSheet下载:pdf Rev.V2 2 页
