SKY65124 1930–1990 MHz High Linearity 2 W Power Amplifier
The SKY65124 is a fully matched 20-pin, lead-free, surface mount, Multichip Module (MCM) Power Amplifier (PA) designed for WCDMA/PCS/DCS/UTMS/TD-SCDMA radio, repeaters, transmitters, mobile radios and WCS fixed wireless applications operating in the 1930–1990 MHz bandwidth. All active circuitry in the module is contained in a single Gallium Arsenide (GaAs) Microwave Monolithic Integrated Circuit (MMIC). The device is manufactured with SKYWORKS Aluminum (Al) GaAs Heterojunction Bipolar Transistor (HBT) process, which allows for single supply operation while maintaining high efficiency and good linearity. The module can operate over the temperature range of -40 °C to +85 °C. A populated evaluation board is available upon request.
技术特性
- High linearity: OIP3 > 45 dBm
- P1 dB > 33 dBm
- ACLR = -45 dBc for Pout > 25 dBm
- ACLR = -55 dBc for Pout > 21 dBm
- High efficiency: PAE 35%
- High gain: 24 dB
- Single DC supply: 5 V
- Internal RF match with DC block
- Active bias circuit
- MCM (20-pin, 6 x 6 mm) lead (Pb)-free package
(MSL3 @ 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
| SKY65124 Power Amplifier |
SKY65124 |
TW16-D190-001 |
|
应用领域 APPLICATION
- WCDMA/PCS/DCS/UTMS/TD-SCDMA
- Repeaters
- ISM band transmitter
- WCS fixed wireless

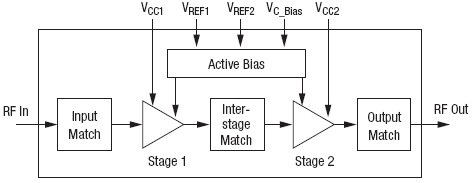

功能框图 Functional Block Diagram
|
