SKY65129-21 1.98-2.02 GHz High Linearity 4 W Power Amplifier
SKYWORKS SKY65129-21 is a Microwave Monolithic Integrated Circuit (MMIC) Power Amplifier (PA) with superior output power, linearity, and efficiency. The device is optimized to operate in the 2 GHz frequency band, which makes it ideal for PCS satellite, PCS cellular, and UMTS applications. The high linearity (high OP1dB and excellent ACLR) and high efficiency of the SKY65129-21 make it ideal for use at the final stage (or close to the final stage) in a transmit chain. The device is fabricated using SKYWORKS high reliability Heterojunction Bipolar Transistor (HBT) technology. The device is internally matched and mounted in a 20-pin, 6 x 6 mm Multi-Chip Module (MCM) Surface-Mounted Technology (SMT) package, which allows for a highly manufacturable low cost solution.
技术特性
- Output power: +36 dBm
- High gain: 30 dB
- Wide dynamic range RF detector
- Internal 50 Ω RF match and bias circuits
- Internal on/off control circuit
- Single DC supply: +5 V
- Small footprint, MCM (20-pin, 6 x 6 mm) SMT package (MSL3, 250 °C per JEDEC J-STD-020)
订购信息 Ordering Information
| SKY65129-21 1.98-2.02 GHz 4 W Power Amplifier |
SKY65129-21 |
TW17-D540-001 |
|
应用领域 APPLICATION
- Satellite phones/SATCOM
- WCDMA
- PCS

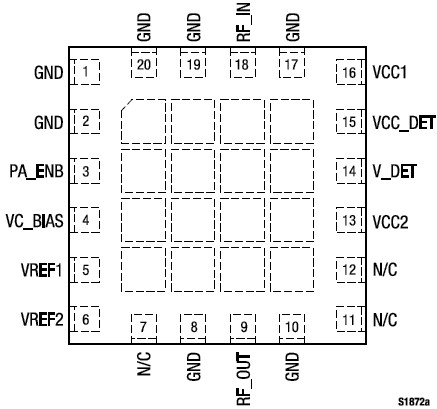

功能框图 Functional Block Diagram
|
