SKY65173-70LF 869-960 MHz Low-Noise Linear Power Amplifier Driver

SKYWORKS SKY65173-70LF is a high performance, wideband, low-noise, highly linear Power Amplifier (PA) driver. The device provides a 2.6 dB Noise Figure (NF) and an output power at 1 dB compression of +26.5 dBm, making the SKY65173-70LF ideal for use in the driver stage of infrastructure transmit chains.

技术特性
  • Wideband frequency range: 869 to 960 MHz
  • Low Noise Figure: < 2.6 dB typical
  • High IIP3: > +44 dBm typical
  • Output P1dB: +26.5 dBm typical
  • High gain: > 16.5 dB typical
  • Single DC supply: +5 V
  • On-chip bias circuit
  • SOT-89 (4-pin, 2.4 x 4.5 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
SKY65173-70LF Low-Noise PA Driver  SKY65173-70LF  TW13-D280
应用领域 APPLICATION
  • 2.5G, 3G, and 4G transceivers
  • ISM band transceivers
  • WCS fixed wireless
  • 3GPP LTE

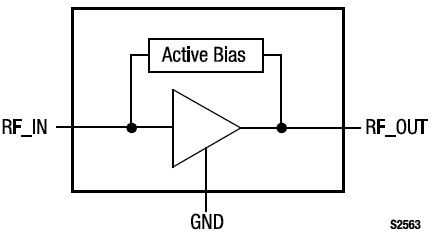

功能框图 Functional Block Diagram

SKY65173-70LF 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY65173-70LF 数据资料DataSheet下载:pdf Rev.V2 2 页
